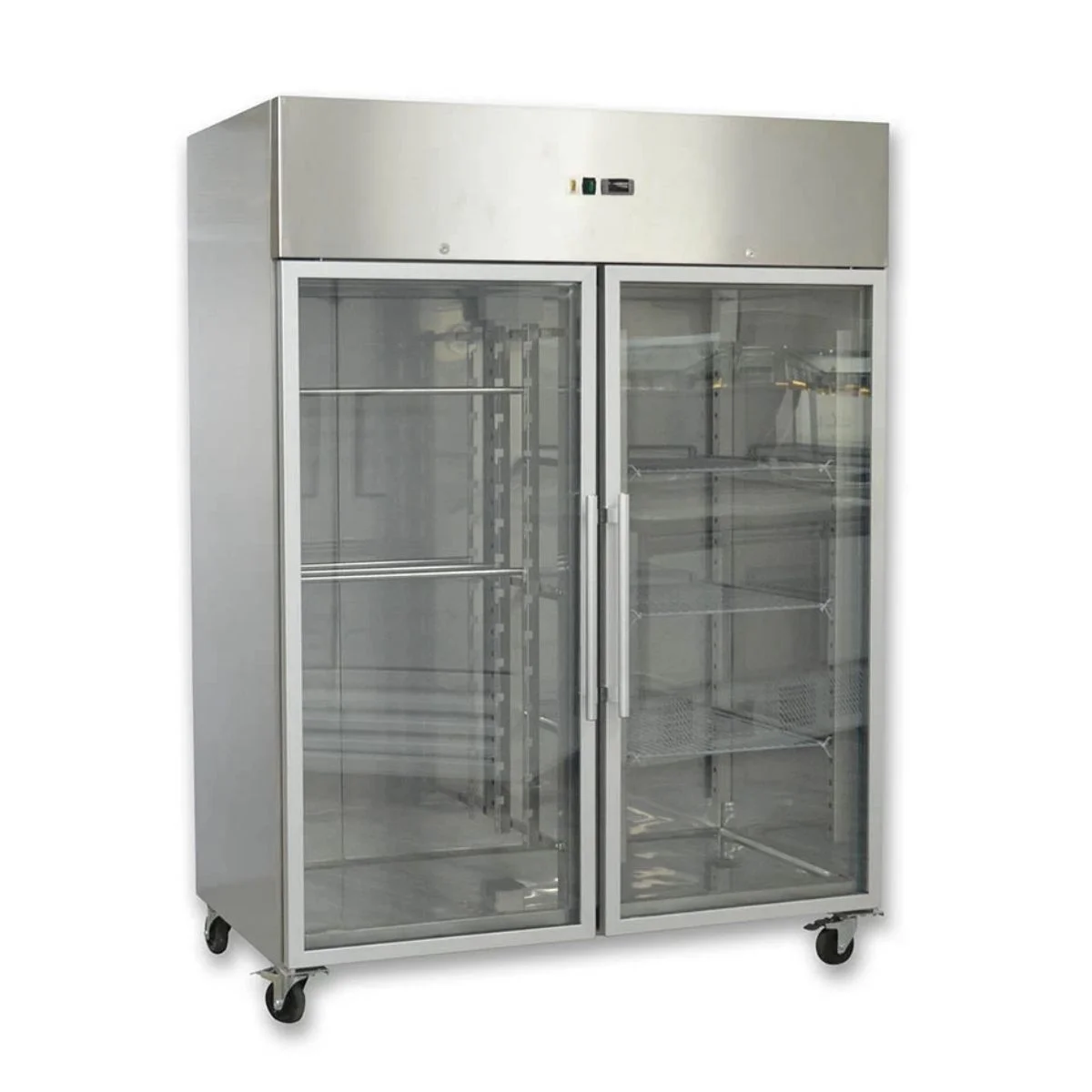

Upright Double Glass Door Freezer
The Blueline GN1410BTG is an upright reach-in freezer, running at -18 to -20 °C — full-height frozen storage on a small floor footprint, taking gastronorm shelves so pans move between the cabinet and the line without decanting. The cabinet measures 1480 × 830 × 2010 mm. Inside, the usable chamber is 1364 × 700 × 1401 mm.
Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 261 kg empty it is a pallet-truck delivery onto a floor rated for it. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat, mainstream parts an engineer can source locally.
1476 litre gross capacity at -18 to -20 °C. 1480 × 830 × 2010 mm external footprint, Adjustable shelves GN2/1: 3, all shelves mounted with anti-tipping system and Digital thermostat - Dixell.
