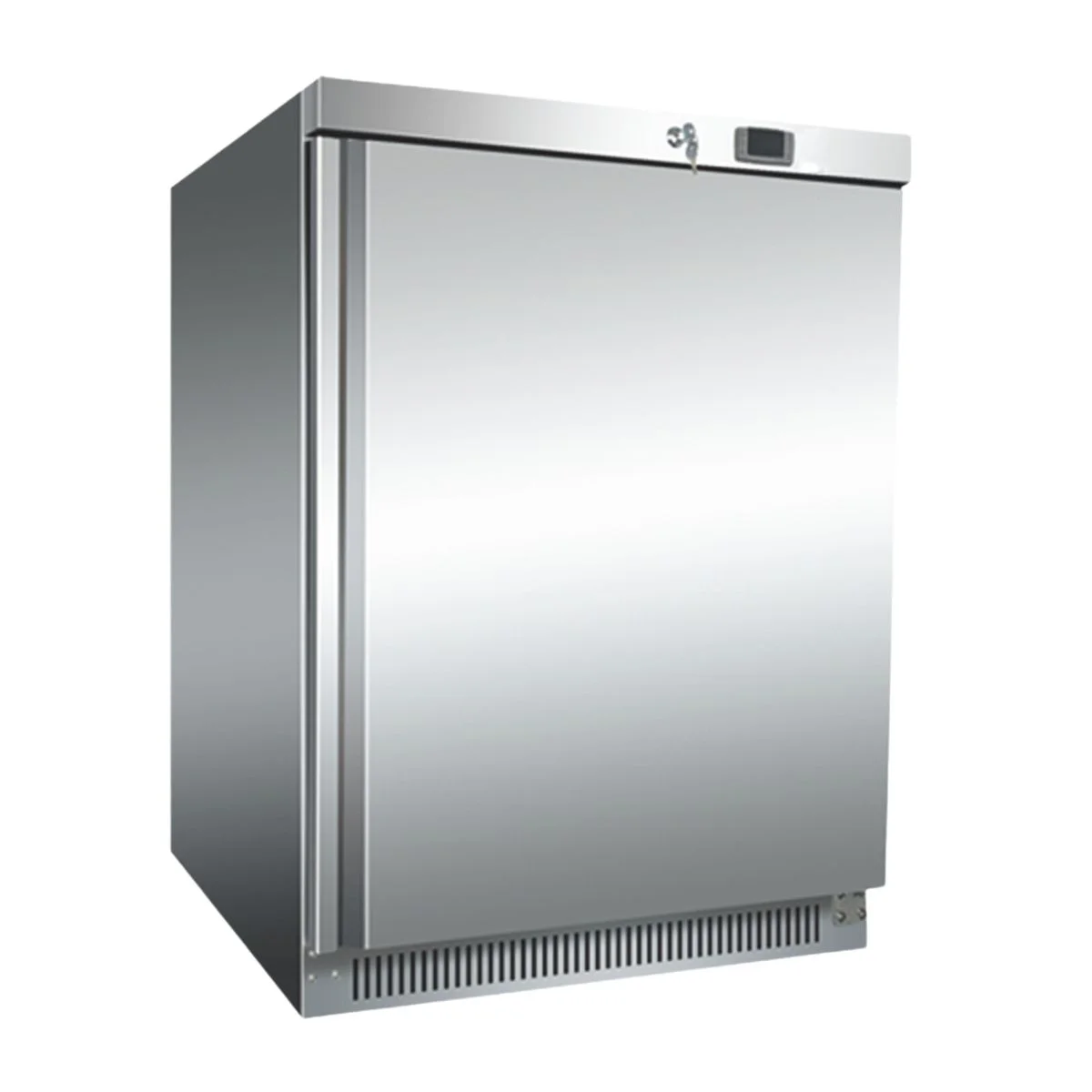

Solid Door Freezer 1 Door Under Counter DF200 S/S
The Blueline DF200 S/S is a counter freezer, running at -10 to -22 °C — frozen storage built into the work surface, so a portion can be drawn without a trip to the walk-in. At 870 mm high it lines up with the worktops either side. The cabinet measures 600 × 615 × 870 mm. Inside, the usable chamber is 510 × 485 × 620 mm.
Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 46 kg empty two people can position it. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat, mainstream parts an engineer can source locally.
140 litre gross capacity at -10 to -22 °C. 600 × 615 × 870 mm external footprint, durable stainless steel construction (S/S), compact under-counter design for space optimization and solid self-closing door with magnetic gasket.
