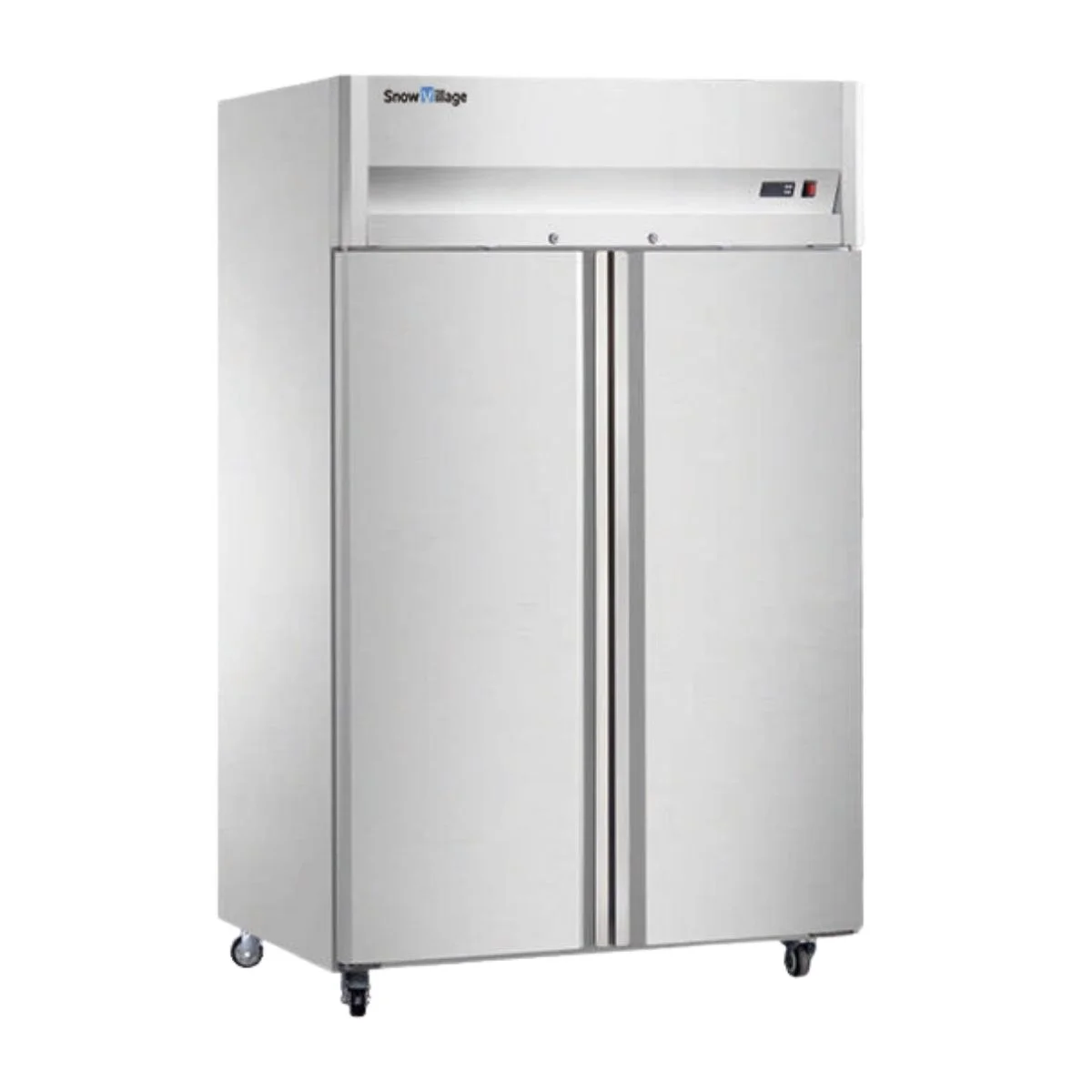

Upright Double Solid Door Freezer CFD-40N2F(HB)
The SV-Blueline CFD-40N2F(HB) is an upright freezer with two solid doors, built for frozen storage running at ≤ -15 °C, in a cabinet 1210 × 905 × 1950 mm. At 1950 mm tall it puts the whole capacity within reach from the floor, on a footprint no larger than the door it stands behind.
Cooling draws 205 W. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. Solid doors rather than glass are the right choice where stock is held rather than merchandised: there is no heat gain through the front and no condensation to manage on a cold pane.
860 litre capacity behind two solid doors, 1210 × 905 × 1950 mm upright cabinet, 205 W cooling draw, operating range ≤ -15 °C and R290 hydrocarbon refrigerant, GWP of 3.
